Measuring correctly is one of the most important skills for DIY projects, home improvements, woodworking, sewing, and construction work. If you’ve ever looked at a tape measure and felt confused by all the lines and numbers, you’re not alone.
Learning how to read a tape measure is much easier than most people think. Once you understand what the markings mean, you’ll be able to measure accurately and avoid costly mistakes.
As the saying goes, “Measure twice, cut once.” A few extra seconds spent measuring properly can save hours of fixing errors later.
Why Learning How to Read a Tape Measure Matters
A tape measure is one of the most commonly used tools in homes and workplaces. Whether you’re hanging a picture frame, building furniture, or checking room dimensions, accurate measurements are essential.
Knowing how to read a tape measure helps you:
- Avoid measurement mistakes
- Complete DIY projects more accurately
- Save materials and money
- Improve construction and woodworking results
- Measure with confidence
Even simple tasks become easier when you understand the markings correctly.
Understanding the Basic Parts of a Tape Measure
Before learning how to read a tape measure, it’s important to know its main parts.
The Hook
The metal piece at the end is called the hook. It attaches to the edge of an object while measuring.
It moves slightly on purpose. This small movement compensates for the thickness of the hook and helps ensure accurate measurements.
The Blade
The long metal strip containing numbers and markings is called the blade.
The blade displays inches, fractions of inches, and sometimes centimeters or millimeters depending on the tape measure type.
The Lock
Most tape measures include a lock button.
The lock keeps the blade extended so you can read measurements without it retracting.
Understanding the Numbers
The large numbered marks represent inches.
For example:
- 1 = One inch
- 2 = Two inches
- 3 = Three inches
- 4 = Four inches
When measuring an object, first identify the nearest whole-inch number before looking at the smaller markings.
This is the foundation of understanding how to read a tape measure correctly.
What Do the Small Lines Mean?
Between each inch are smaller lines representing fractions of an inch.
Most standard tape measures divide each inch into:
- 1/2 inch
- 1/4 inch
- 1/8 inch
- 1/16 inch
The smaller the line, the smaller the fraction it represents.
Think of an inch like a pizza. The more slices you cut it into, the smaller each piece becomes.
Reading Half-Inch Marks
The longest line between two inch marks represents 1/2 inch.
Example:
Between 4 and 5 inches:
- 4½ inches is exactly halfway
If your measurement lands on this line, the reading is simple.
Half-inch measurements are among the easiest parts of learning how to read a tape measure.
Reading Quarter-Inch Marks
Quarter-inch marks are slightly shorter than half-inch marks.
Examples include:
- ¼ inch
- ¾ inch
For instance:
- First quarter mark after 2 inches = 2¼ inches
- Third quarter mark after 2 inches = 2¾ inches
These markings are commonly used in carpentry and furniture projects.
Reading Eighth-Inch Marks
Each quarter-inch section is divided further into eighths.
Examples:
- 1/8 inch
- 3/8 inch
- 5/8 inch
- 7/8 inch
If a measurement falls on the fifth eighth mark after 6 inches, the measurement is:
6⅝ inches
Many home improvement projects use eighth-inch accuracy.
Reading Sixteenth-Inch Marks
The smallest common markings on many tape measures are sixteenth-inch increments.
Examples include:
- 1/16 inch
- 3/16 inch
- 5/16 inch
- 7/16 inch
These small marks provide greater precision.
When learning how to read a tape measure, sixteenth-inch measurements often require the most practice.

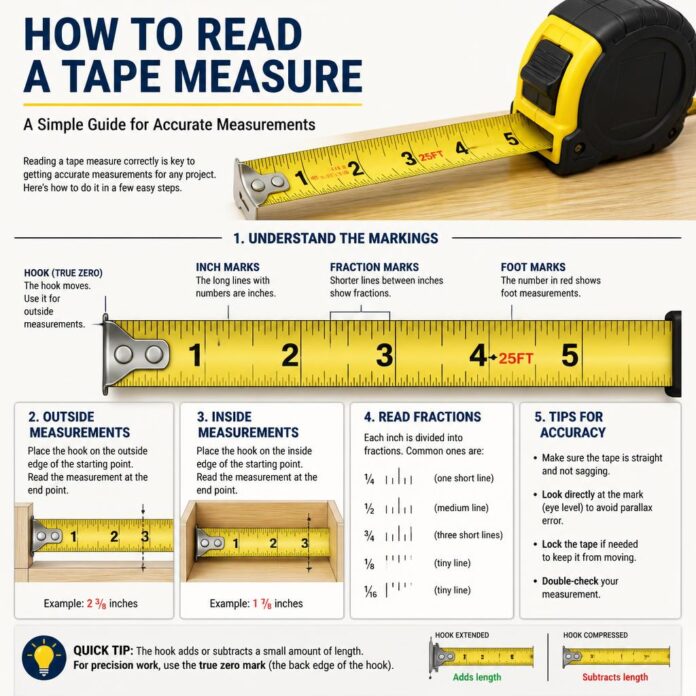

A Quick Visual Breakdown
Within one inch, the markings typically appear as:
- Largest line = 1 inch
- Next largest = 1/2 inch
- Medium lines = 1/4 inch
- Smaller lines = 1/8 inch
- Smallest lines = 1/16 inch
The different line lengths make it easier to identify measurements quickly.
Example Measurements
Let’s practice a few examples.
Example 1
The tape reaches:
- 5 inches
- Plus one half-inch mark
Measurement:
5½ inches
Example 2
The tape reaches:
- 8 inches
- Plus three quarter-inch mark
Measurement:
8¾ inches
Example 3
The tape reaches:
- 12 inches
- Plus five eighths
Measurement:
12⅝ inches
These simple examples help reinforce how to read a tape measure accurately.
Understanding Feet and Inches
Most tape measures also display feet.
Every 12 inches equals one foot.
Examples:
- 12 inches = 1 foot
- 24 inches = 2 feet
- 36 inches = 3 feet
Some tape measures highlight foot intervals with different colors or symbols.
This makes measuring larger objects much easier.
Metric Tape Measures
Many tape measures include metric measurements.
These use:
- Centimeters (cm)
- Millimeters (mm)
Metric measurements are often easier because they use a base-10 system.
For example:
- 10 mm = 1 cm
- 100 cm = 1 meter
When learning how to read a tape measure, it’s helpful to understand both imperial and metric systems.
Common Tape Measure Symbols
Some tape measures contain special markings.
Black Diamonds
Black diamonds often appear every 19.2 inches.
These marks are used in construction layouts.
Red Numbers
Certain numbers may be printed in red.
These often indicate standard wall stud spacing used in building construction.
Most homeowners won’t use these markings regularly, but it’s helpful to know their purpose.
Common Mistakes to Avoid
Even experienced users sometimes make measurement errors.
Avoid these common mistakes:
- Reading the wrong line
- Forgetting fractions
- Starting from a damaged hook
- Measuring at an angle
- Recording numbers incorrectly
A good habit is to double-check every important measurement.
Remember the classic rule: “Measure twice, cut once.”
Tips for Better Accuracy
Follow these simple tips:
Keep the Tape Straight
A bent or angled tape can produce incorrect results.
Always pull the tape straight across the object.
Lock the Blade
Use the locking mechanism when measuring larger items.
This prevents movement while reading measurements.
Read at Eye Level
Looking from an angle can create reading errors.
Read the tape directly from above whenever possible.
Use Good Lighting
Clear visibility helps identify small fractional markings correctly.
How Professionals Read Measurements Quickly
Professionals don’t count every line individually.
Instead, they recognize patterns.
For example:
- Long center line = 1/2 inch
- Medium lines = 1/4 inch
- Smaller lines = 1/8 inch
With practice, reading fractions becomes almost automatic.
That’s why mastering how to read a tape measure gets easier every time you use it.
Practice Exercise
Try measuring a few household items:
- Smartphone
- Notebook
- Table edge
- TV remote
- Picture frame
Write down each measurement and identify:
- Whole inches
- Fractions
- Total measurement
This simple exercise builds confidence quickly.
When Precision Matters Most
Accurate measurements are especially important for:
- Woodworking projects
- Cabinet installation
- Flooring
- Furniture building
- Sewing and tailoring
- Construction work
Even a small measuring mistake can affect the final result.
Understanding how to read a tape measure correctly helps ensure professional-looking outcomes.
Final Thoughts
Learning how to read a tape measure is a practical skill that pays off in countless situations. Once you understand the inch markings, fractions, and measurement patterns, using a tape measure becomes second nature.
Start with whole inches, learn the half-inch and quarter-inch marks, then move on to eighths and sixteenths. With a little practice, you’ll be reading measurements quickly and accurately.
As many craftsmen say, “Good work begins with good measurements.” Mastering how to read a tape measure is the first step toward more successful projects.
